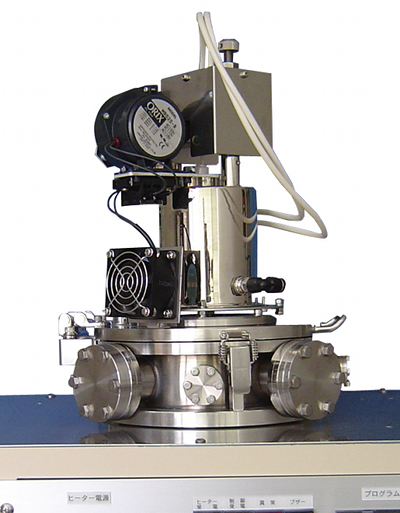

Thermo Riko's IVF infrared forcused heaters are using a specially designed Infrared light bulb to effectively emit NIR (near infrared) wavelengths. Gold coated spheroid reflectors are precisely manufactured to focus the NIR onto a sample in vacuum chamber or in atmospheric.
Specifications And Features
- Max temprature: 1,500°C (IVF298W)
- Heating speed: 100°C/sec max. (IVF298W)
- Less than 1 minute to 1,500°C
- Sample size: 10 ~ 20mm diameter
- Can be used with any gases (i.e. Oxygen)
- Cooling : water and air
- Cooling water requirement: Max. 5 bar (?) filtered water recommended
- No contamination from atmospheric heat source
- Programmable controller allows flexible control of the temperature and time
- Low power consumption, 1kW and 2kW model
| Model | IVF298W | IVF198W |
|---|---|---|
| Type | High Temp. | Standard |
| Reflector | Spheroid Mirror, water cooled | |
| Heating area, diameter | 10 ~ 20mm | 10mm |
| Max. temperature | 1,500°C | 1,300°C |
| Max. speed | 100°C/sec | 50°C/sec |
| Sample Holder | Quartz | |
| Ultimate Pressure | 5 x 10-6 mbar | |
| Gas | Supports inert gas | |
| Power supply | AC100V/20A | AC100V/10A |
| Cooling Water flow rate | 2 L/min | |
| Typical application | High temperature heating of Silicon and ceramics...etc | |
